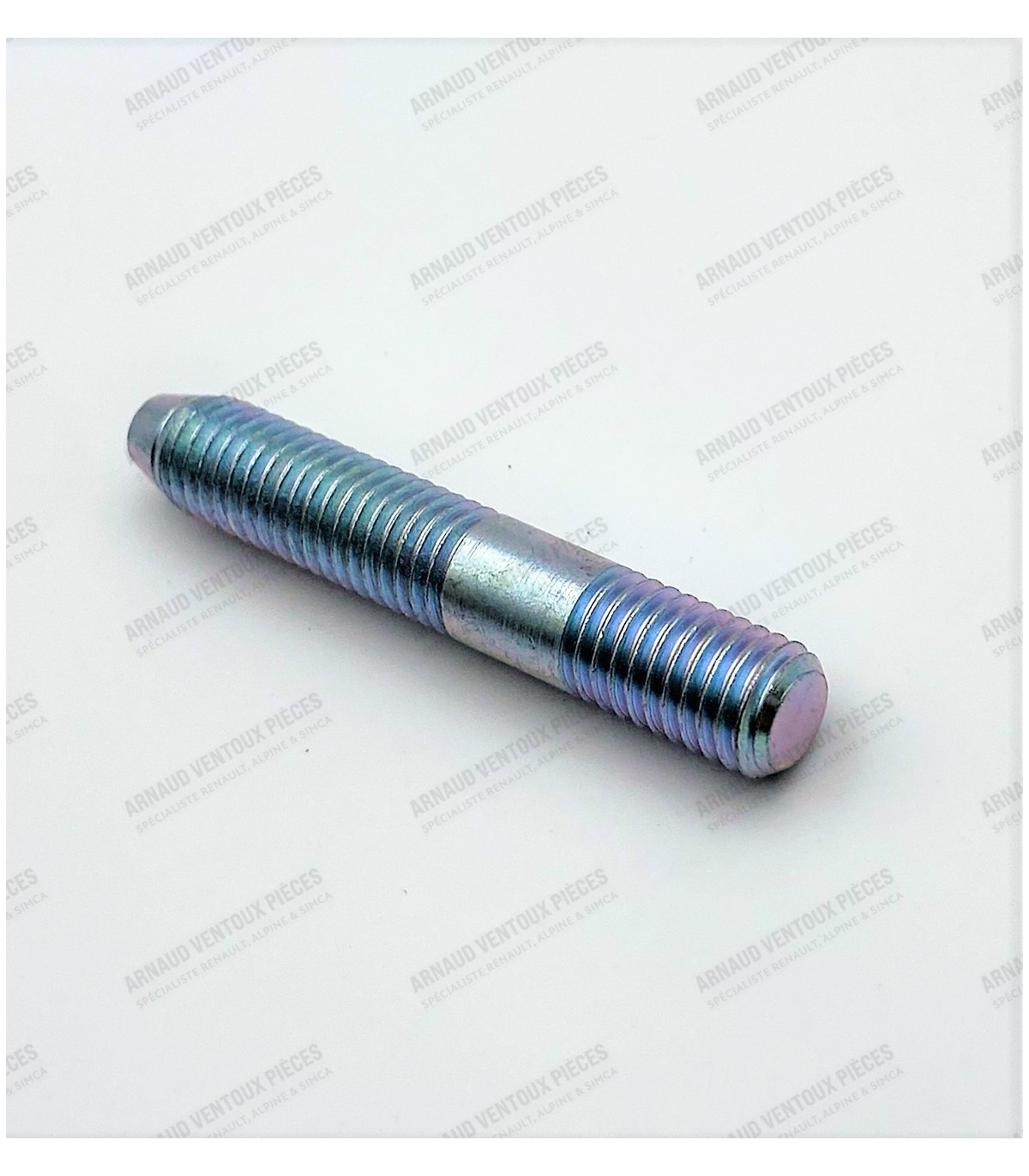

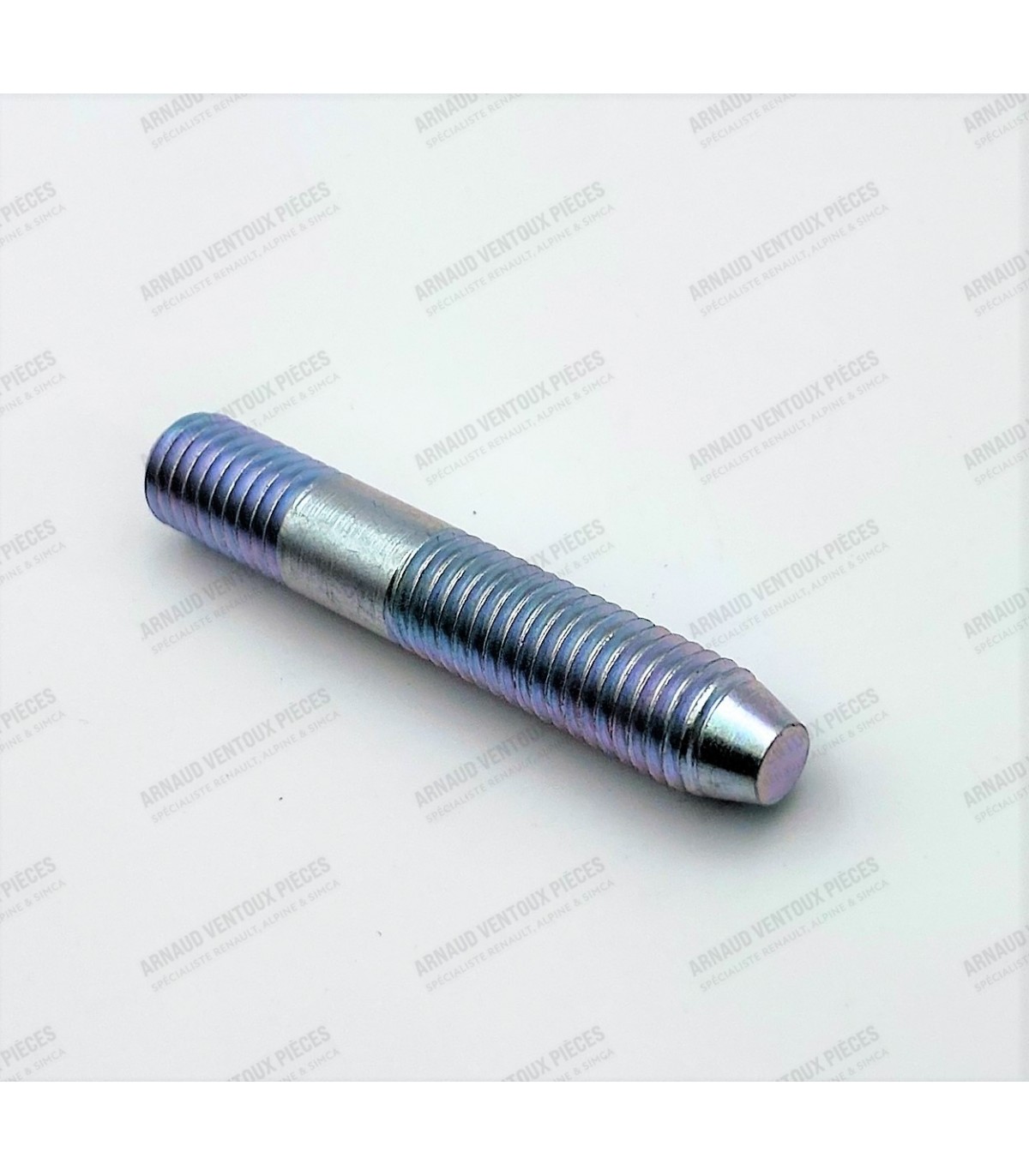

Rear trumpet mounting stud

• Suitable for WEBER 40DCOE carburetor
• Protrusion length from the carburetor = 25mm
• Stud/nut mounting
• Allows the installation of high-performance filters REF 48099 or 48100
• Also suitable for AVP sock filter ref 48103
• If installing with a new generation venturi REF 48084 or REF 48085, then the installation of spacer REF 48087 is recommended.
• For competition use

Nut specifications:

• Thread diameter: M8x1.25
• Width (overall): 15.50 mm
• Material: Brass
• 13 mm wrench

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

Convient pour:

• R8 / A110: Frein Arrière (Montage Type gros frein)
• A310.4 (Tous modèles) : Frein Arrière
• A310.6 (Avant 1980) : Frein Arrière

• Useful length (L on photo diagram number 3): 12.5mm
• Sold with the pin
• OE Renault / Alpine Ref: 0705339100

• Overall length: 245.5cm
• Sheath length: 193.5cm
• Cable length: 235cm

Suitable for:

• A110.1100 (VA and VB)
• A110.1300 (VA and VB)
• A110.1300 VC (V85)

Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.

• These bushings replace the original bushings; no modifications are required.
