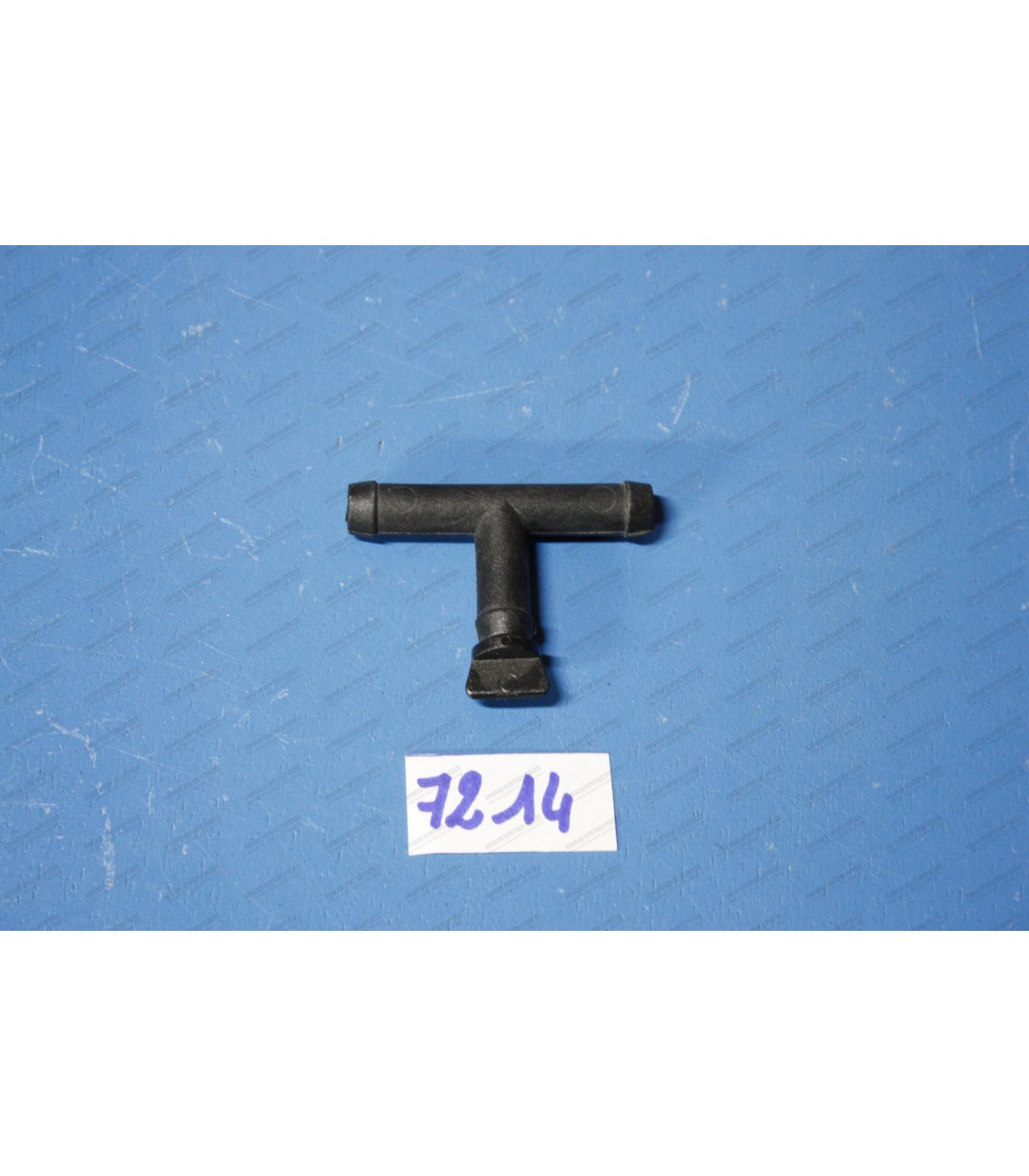

Plastic "T" with bleed screw - Ø 10mm

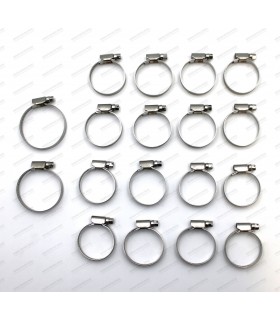

This kit is composed of:

AVP 5214 Ø 25 to 40mm x4

AVP 5217 Ø 8 to 16mm x12

AVP 5223 Ø 12 to 20mm x7

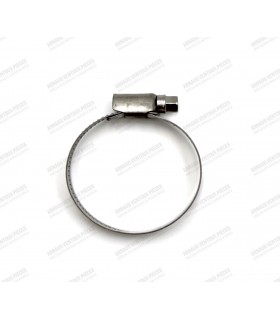

AVP 5215 Ø 16 to 27mm x3

AVP 5209 Ø 40 to 60mm x2

• Same as original Bosch Ref: 1 235 522 210

• Transforms rust into a stable, black layer
• Essential for inaccessible bodywork corners
• Apply neat and with a brush to all rusty surfaces

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin (x4)

Dimensions of the various parts:

• • Liner bore diameter: Ø 76mm
  • Liner flange or top diameter (D): Ø 90.10mm
  • Liner base diameter (A): Ø 80.60mm
  • Overall height including skirts of cylinder liners (C): 134mm
  • Height from top of cylinder liner to base seal area (E): 95mm
  • Shaft dimensions: Ø 20x65mm (Cirlip-free mounting)
  • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
