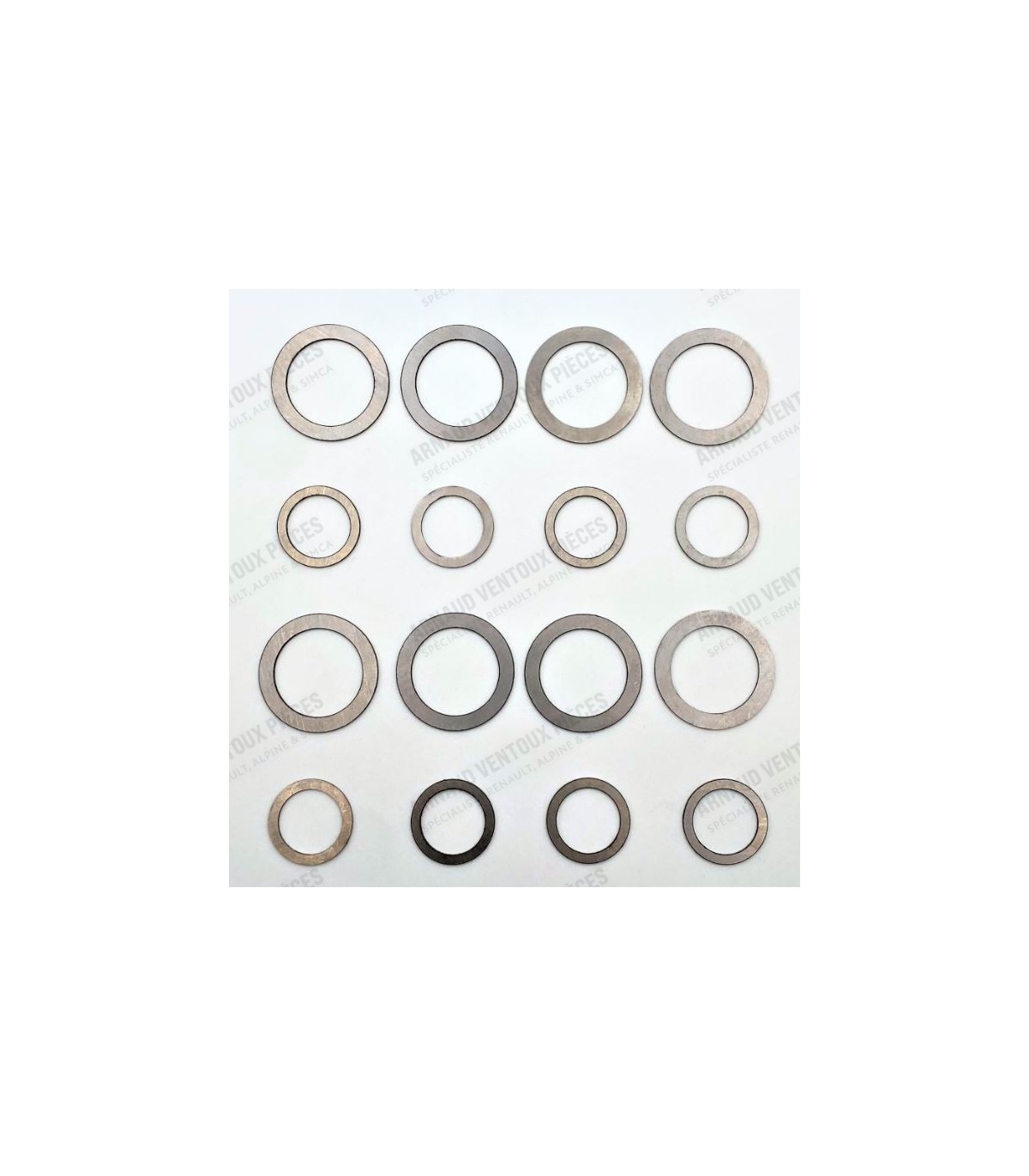

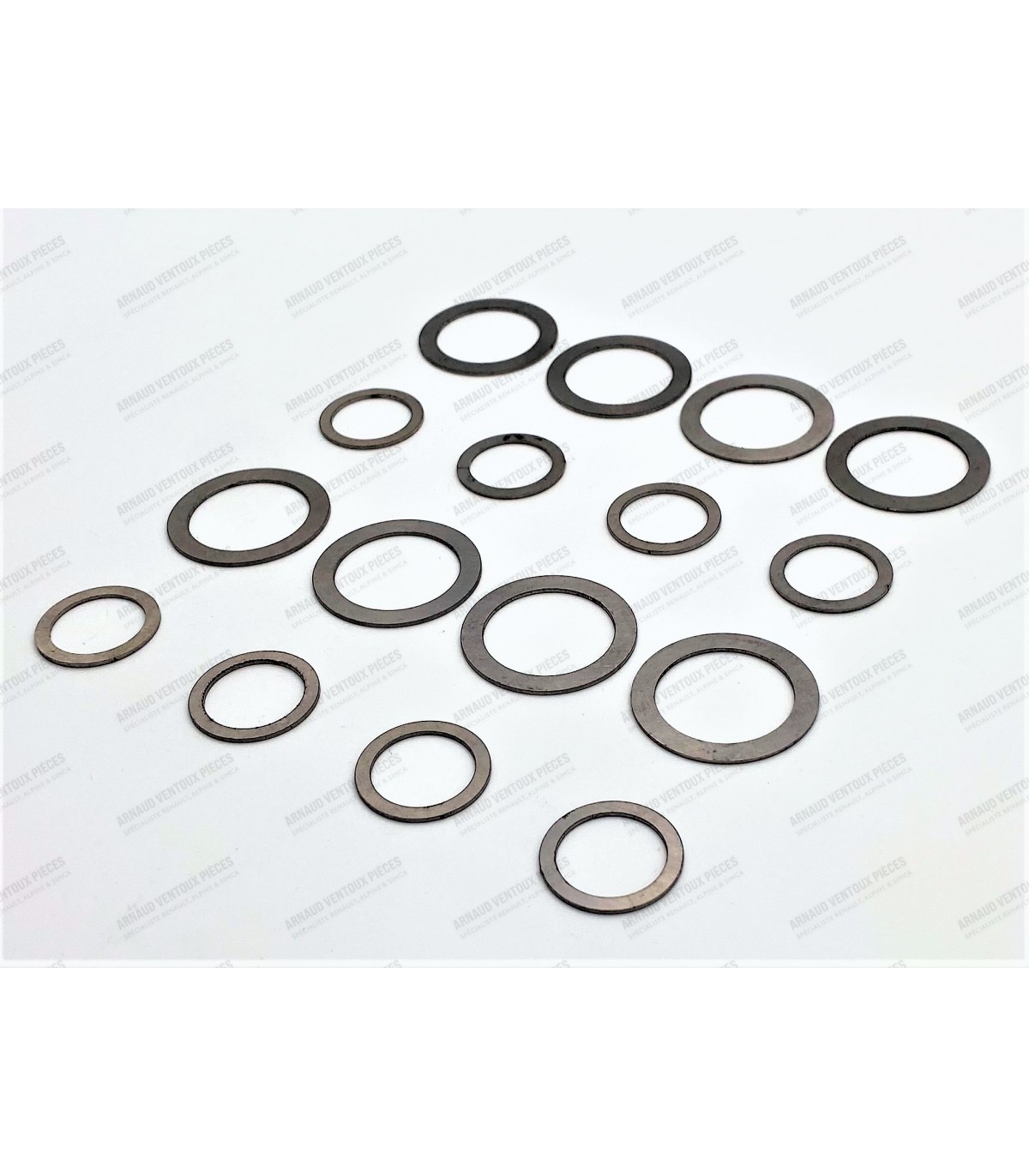

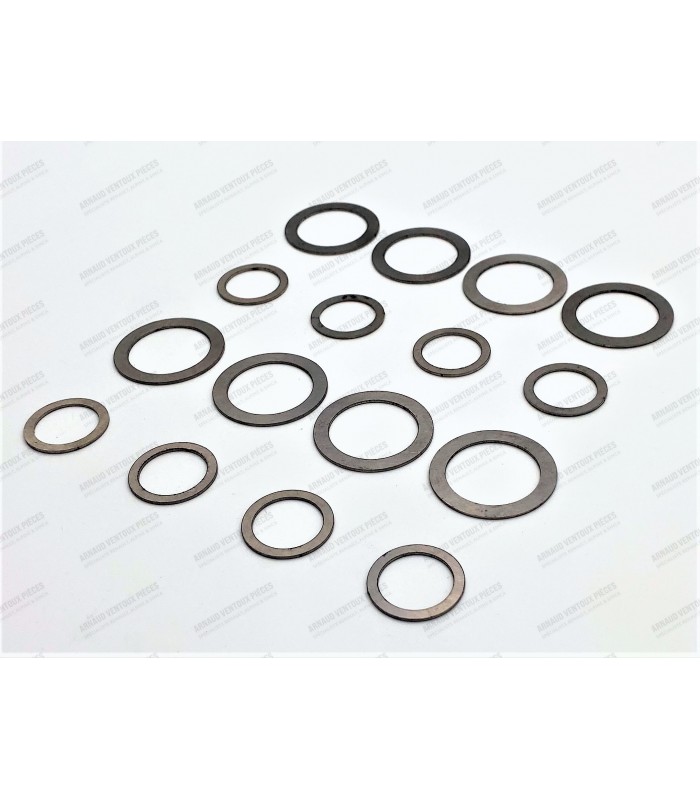

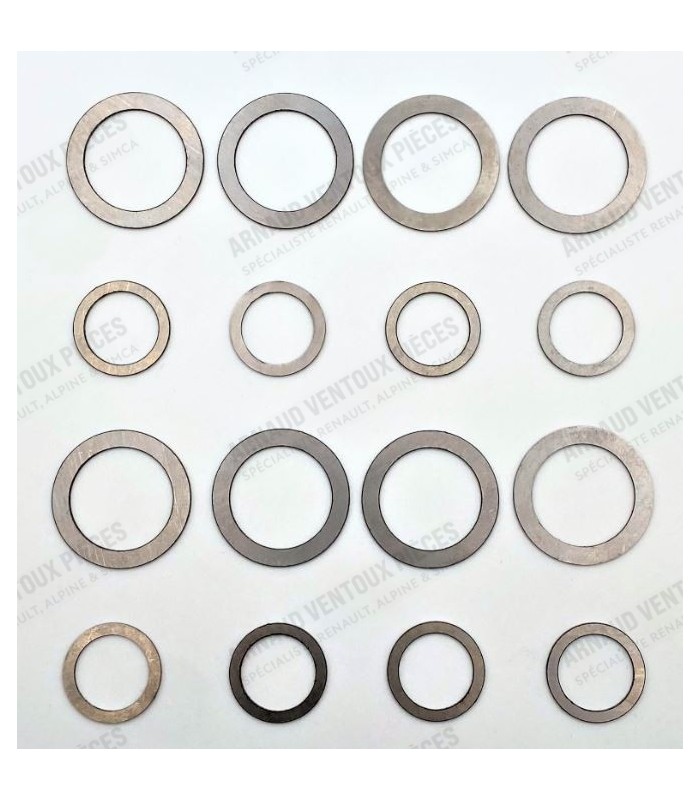

Kit of 16 valve spring washers (1600cm³ engine) - Ref 0608420800 (8 pieces) and Ref 7700524534 (8 pieces)
Reference:
6003
- Thickness : 1mm
Compatible with 1565cm³ to 1647cm³ engines (Type 807 844 and 843):
- A110 1600S/SC/SX
- A310 1600cc
- R12G / R17G
- R16.TS/TX
€98.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
