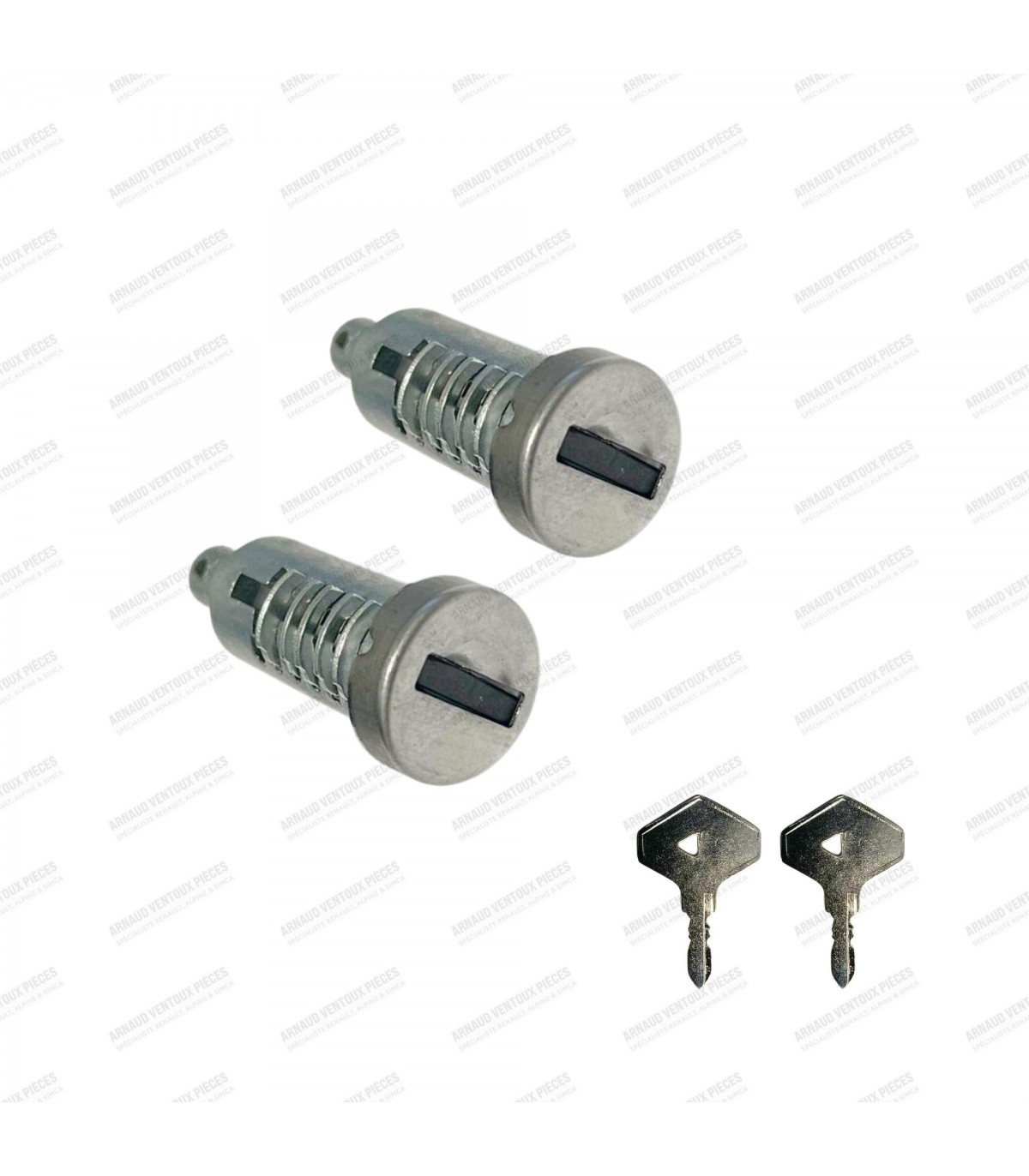

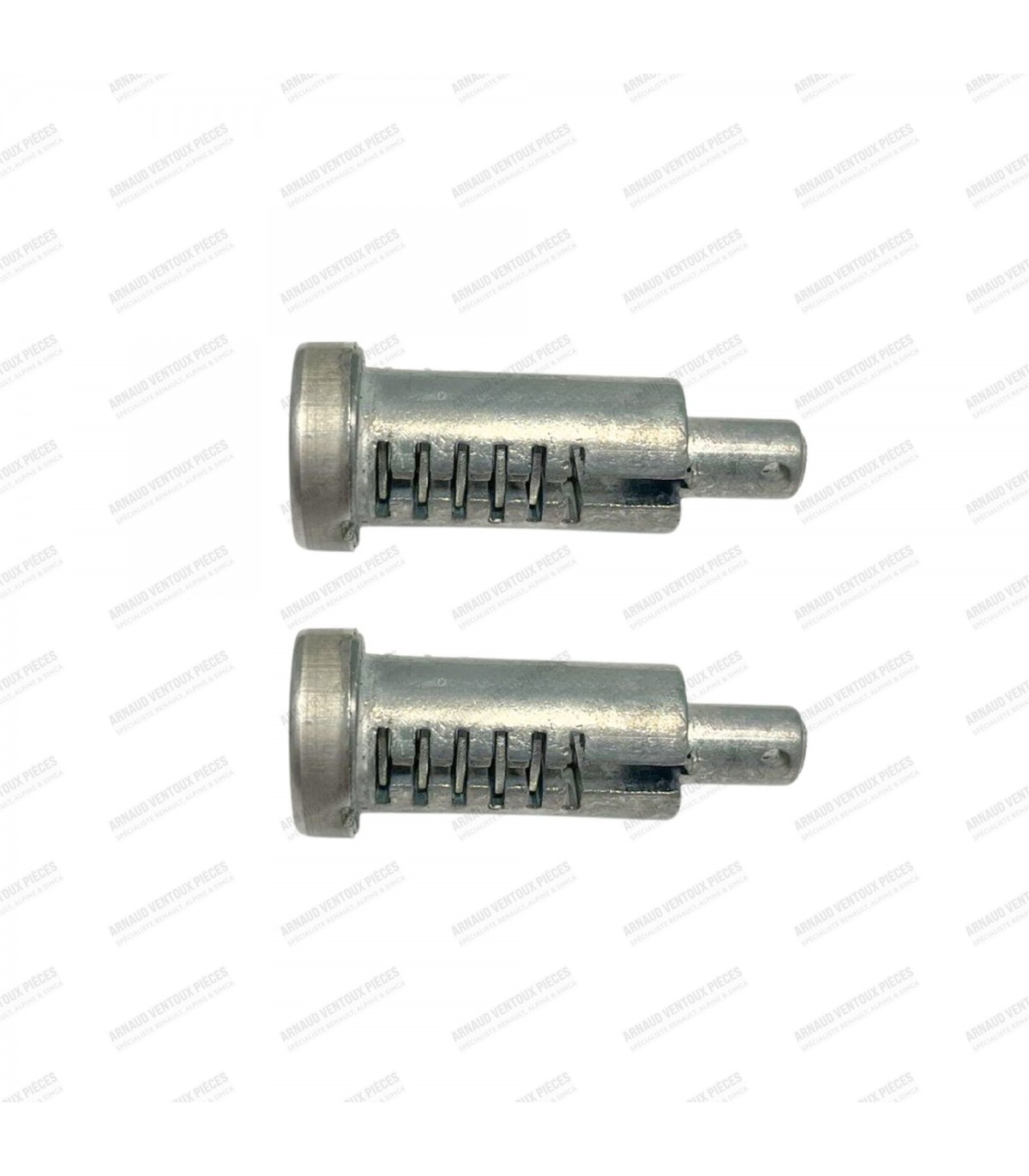

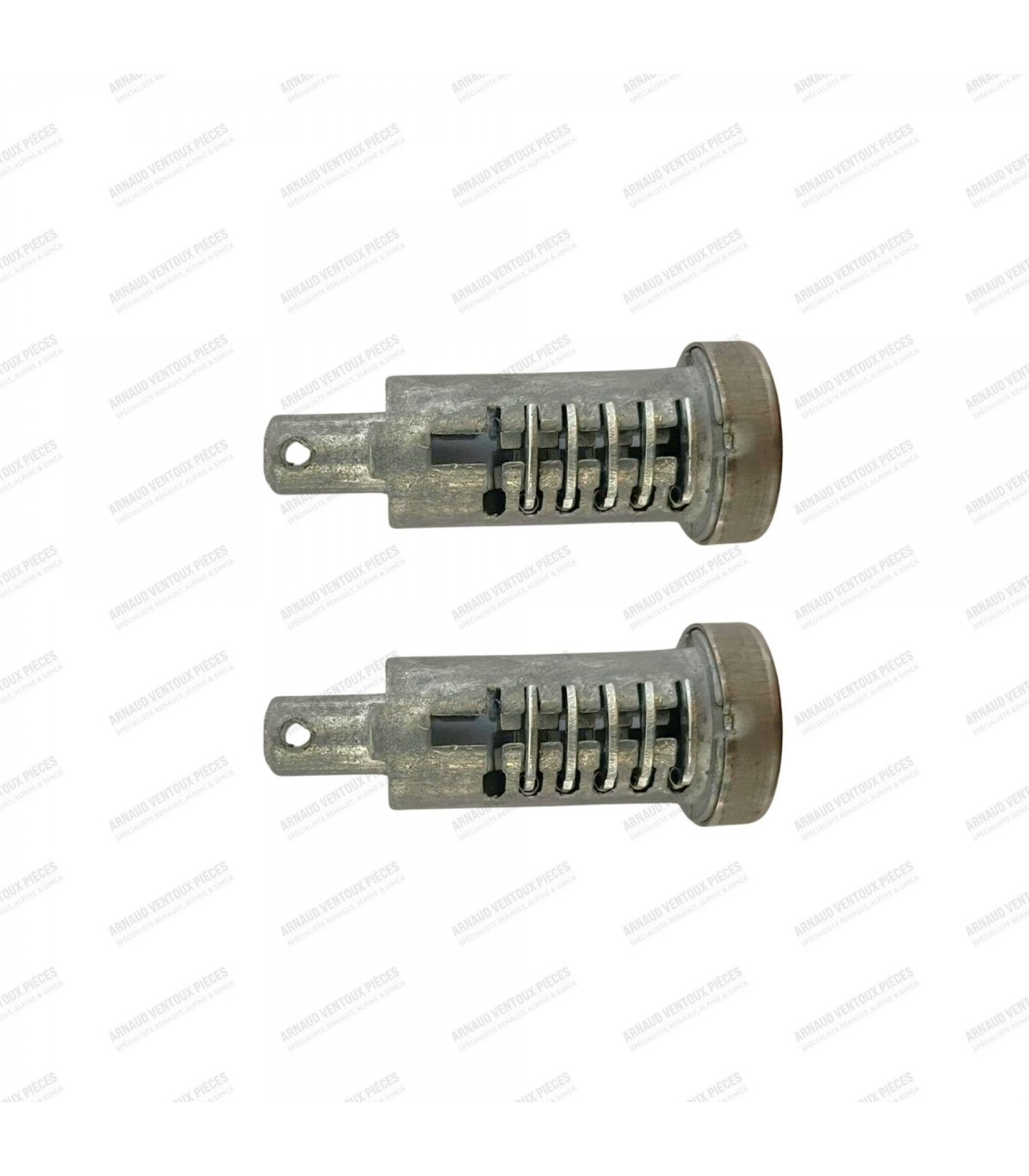

Kit of 2 front or rear door lock cylinders with keys - R4 (All models)

Reference:
4L-967
  • Kit consisting of two door lock cylinders and two identical keys
  • Total cylinder length: 36mm
  • Length from head to fixing pin: 30mm
  • Cylinder head diameter: Ø 15.20mm
  • Lock cylinder diameter: Ø 11.50mm
  • Renault OE part number: 7701029068

Suitable for:

  • R4 Sedan: Front and Rear Doors
  • R4 F4 or R4 F6: Front Door + Trunk Back
Read moreShow less
€16.00 (tax incl.)
Out of stock
Notify me when available
Product Details
4L-967
Customers who bought this product also bought:
Set of 12 segments Ø 58mm - 1.75Cx2x3.5 R - 1 Set of 12 segments Ø 58mm - 1.75Cx2x3.5 R - 1

Segment Characteristics:

    • Segment Diameter:Ø 58mm
    • Thickness of Upper Segments (Fire-resistant): 1.75mm
    • Thickness of Intermediate Segments (Waterproof): 2mm
    • Low ring thickness (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.or the values ​​provided in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Reference: 2002
€104.00 (tax incl.)
Add to cart
In stock
Cylinder head gasket - Ø 58mm Cylinder head gasket - Ø 58mm

Cylinder head gasket specifications:

    • Crimping diameter: Ø 59.7mm
    • Cylinder head gasket thickness:1.40mm

Installation direction:

The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).

For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.

If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.

However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.

Reference: 1038
€19.00 (tax incl.)
Add to cart
In stock
