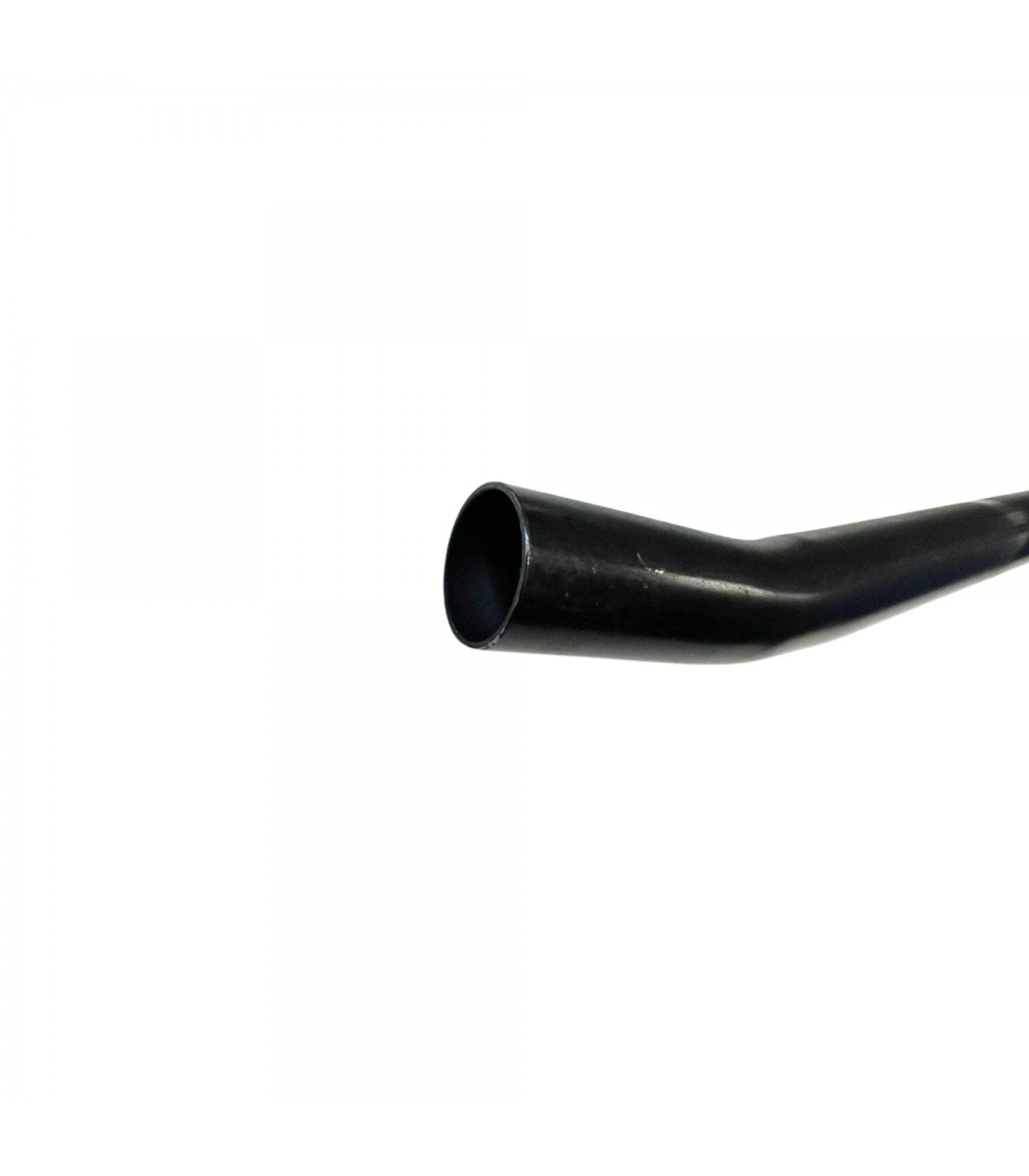

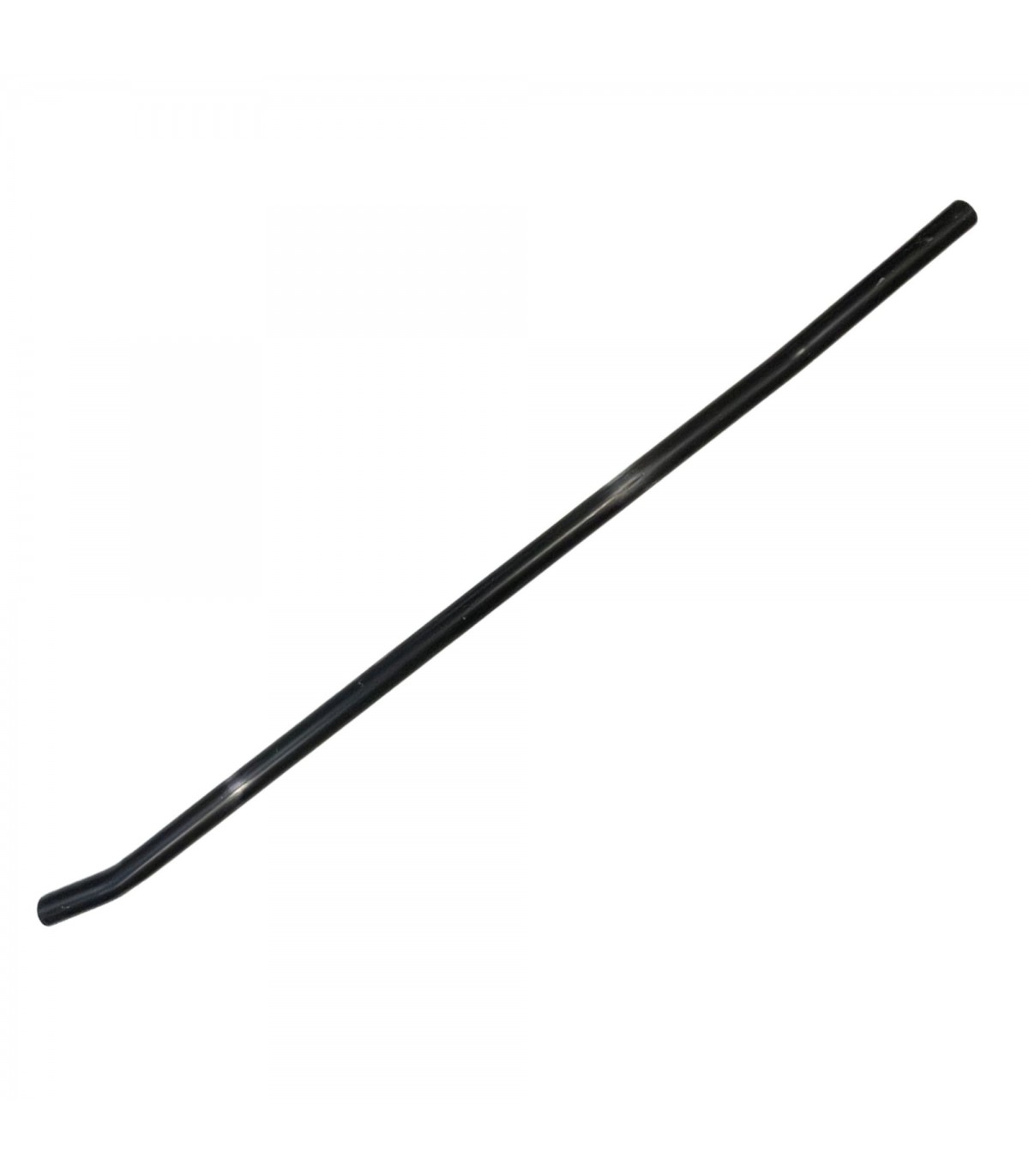

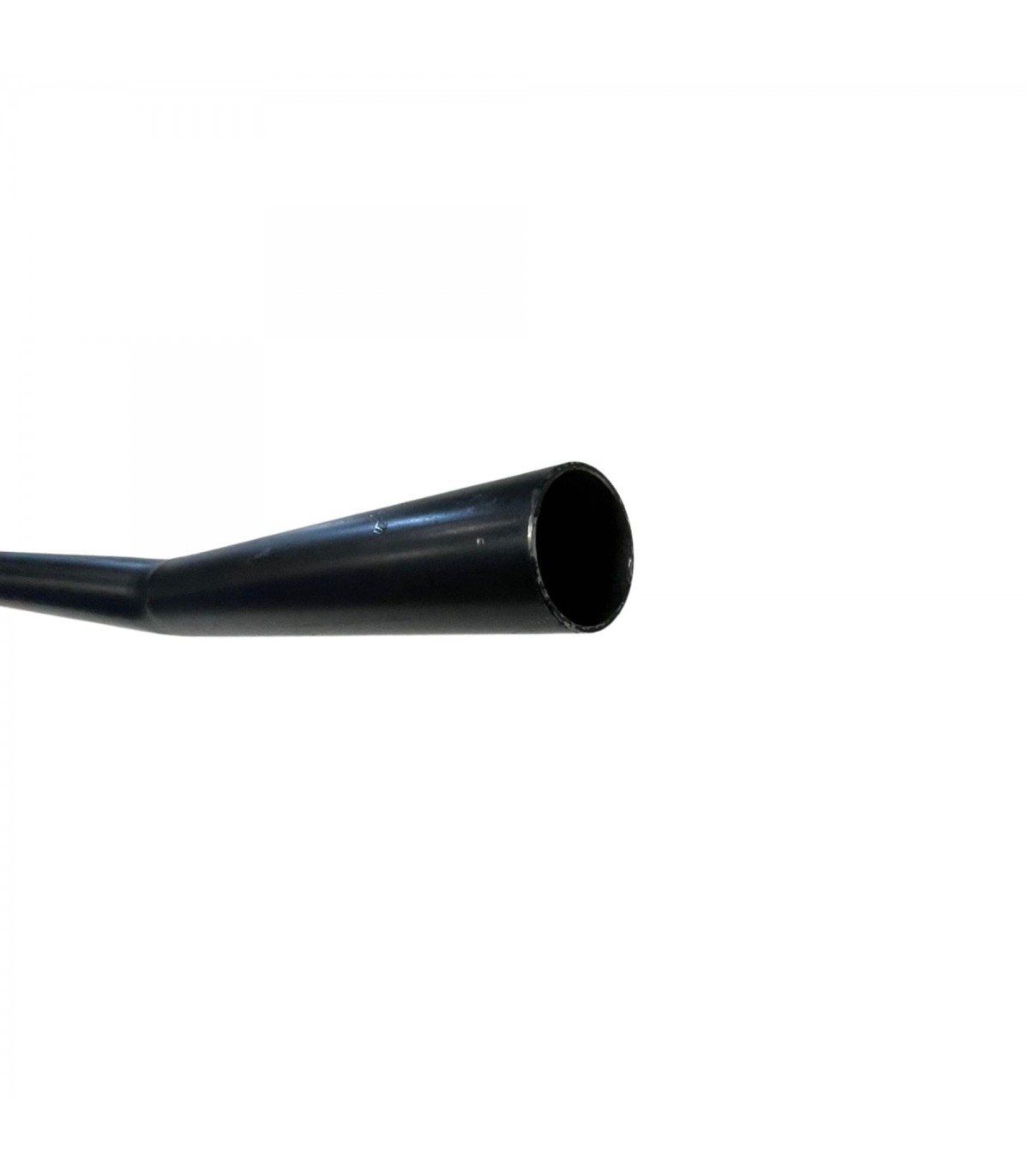

Intermediate exhaust pipe - R16L R1150 (From 1965 to 1968)

• • Mounts before the front muffler.
  • Reference: 0354302711 / 0354241800 / 0354192200 / 0354235800
  • Inlet pipe diameter: Ø 36mm (inner)
  • Outlet pipe diameter: Ø 40mm (outer)

Suitable for:

• • R16 L (R1150) from 1965 to 1969
  • R16 1.6 TL/TA (1565cc/1647cc) from 1968 to 1972
  • R16 TL (R1152) from vehicle no. 1 to no. 6343 (USA Export) from 1968 to 10/1970

• • Mounts between the intermediate pipe and the exhaust outlet pipe
  • Renault OE Ref: 0821684600 / 7700562545
  • Inlet Pipe Diameter: Ø 40mm (inner)
  • Outlet Pipe Diameter: Ø 35mm (outer)

Suitable for:

• • R16 L (R1150) from 1965 to 1969
  • R16 TL (R1152) from vehicle #1 to 6343 (USA Export) from 1968 to 10/1970

Nut specifications:

• Thread diameter: M8x1.25
• Width (overall): 15.50 mm
• Material: Brass
• 13 mm wrench

• Mounts after the rear muffler.
• Renault OE Ref: 0820681800
• Inlet Pipe Diameter: Ø 35mm (inner)
• Outlet Pipe Diameter: Ø 38mm (outer)

Suitable for:

• R16 L (R1150) from 1965 to 1969
• R16 TL (R1152) from vehicle #1 to 6343 (USA Export) from 1968 to 10/1970

• Length: 36.5cm
• Male/Female Connection: Ø 3/8"-24UN
• Original Renault OE Reference: 7701348758
