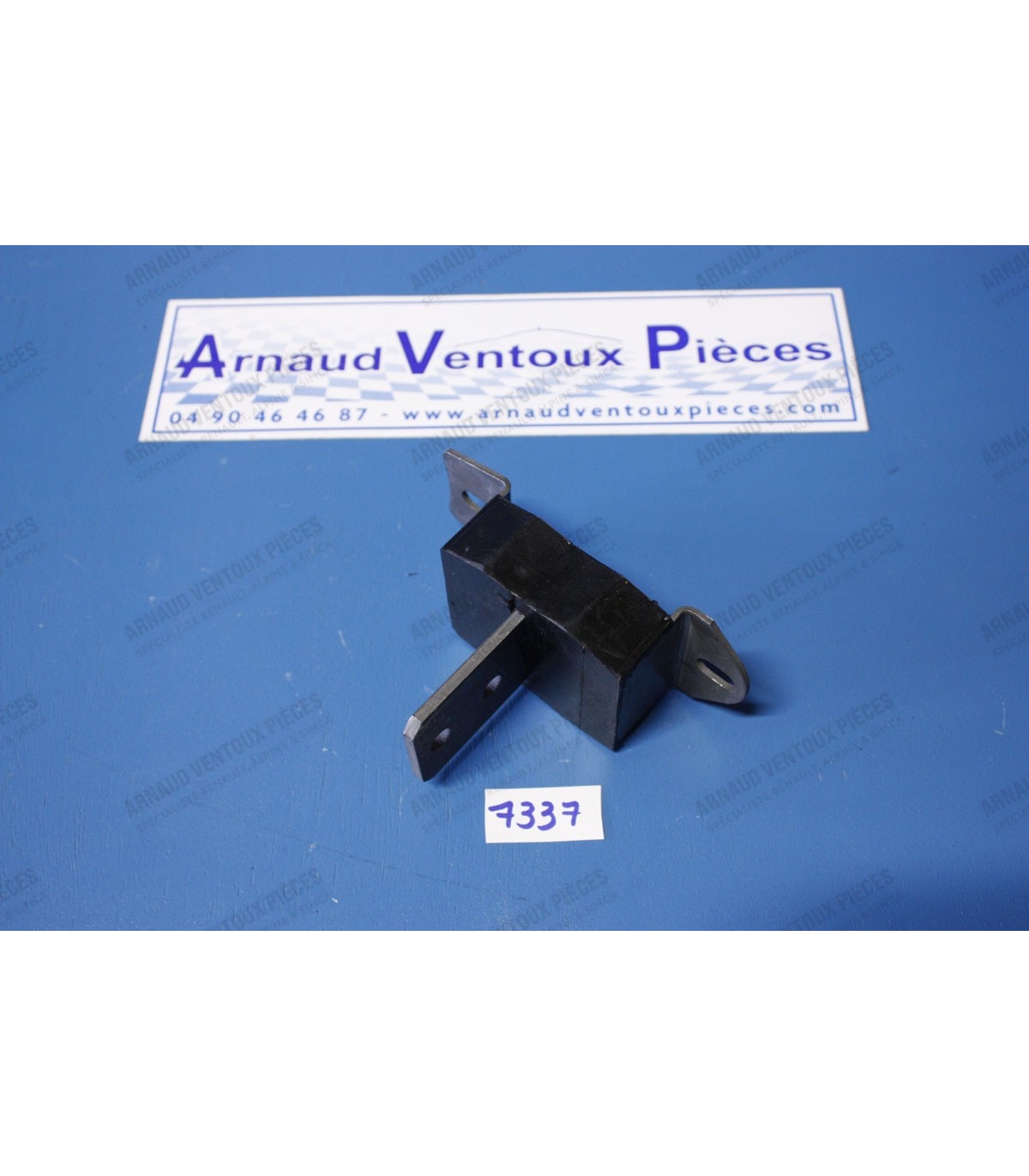

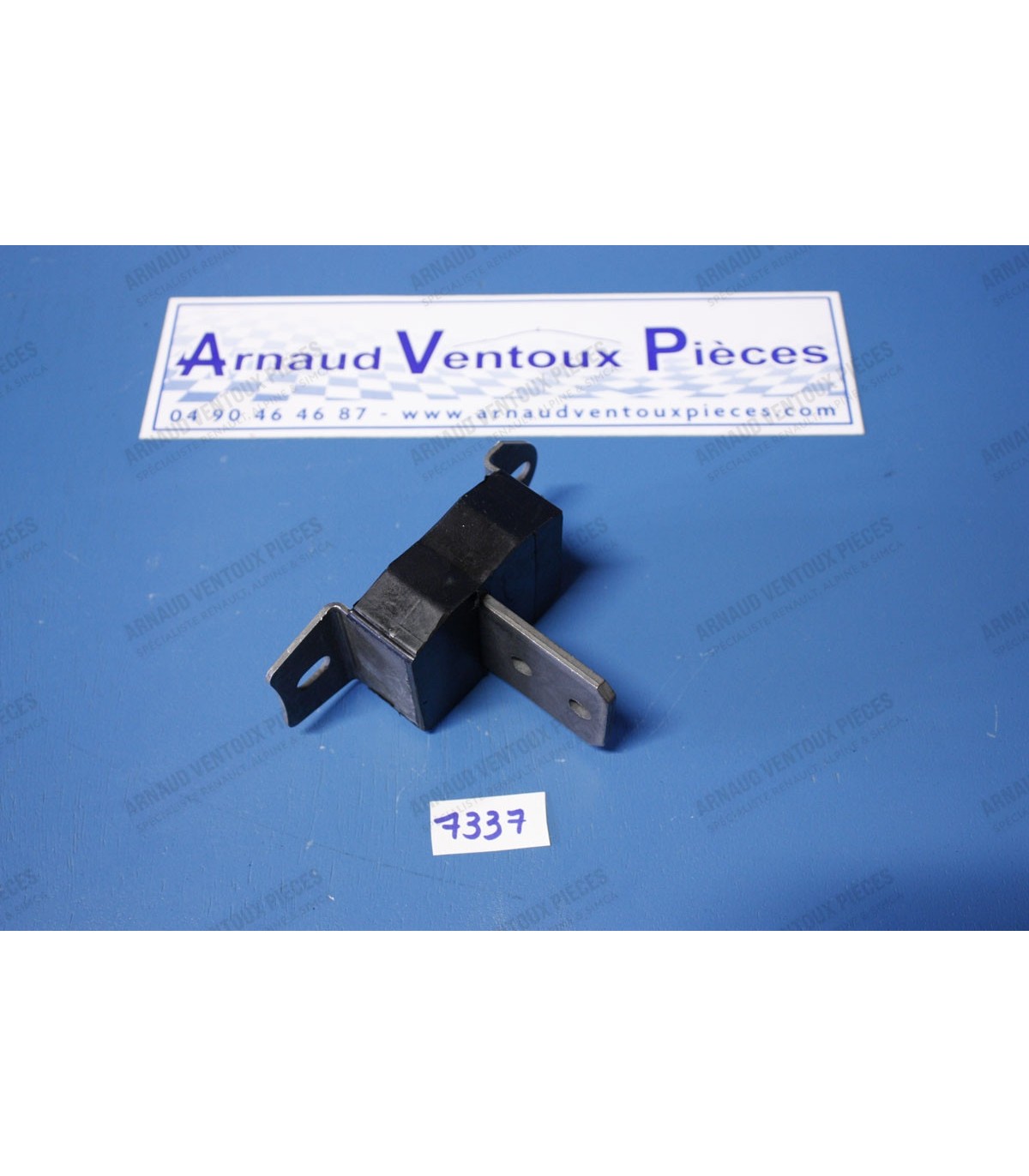

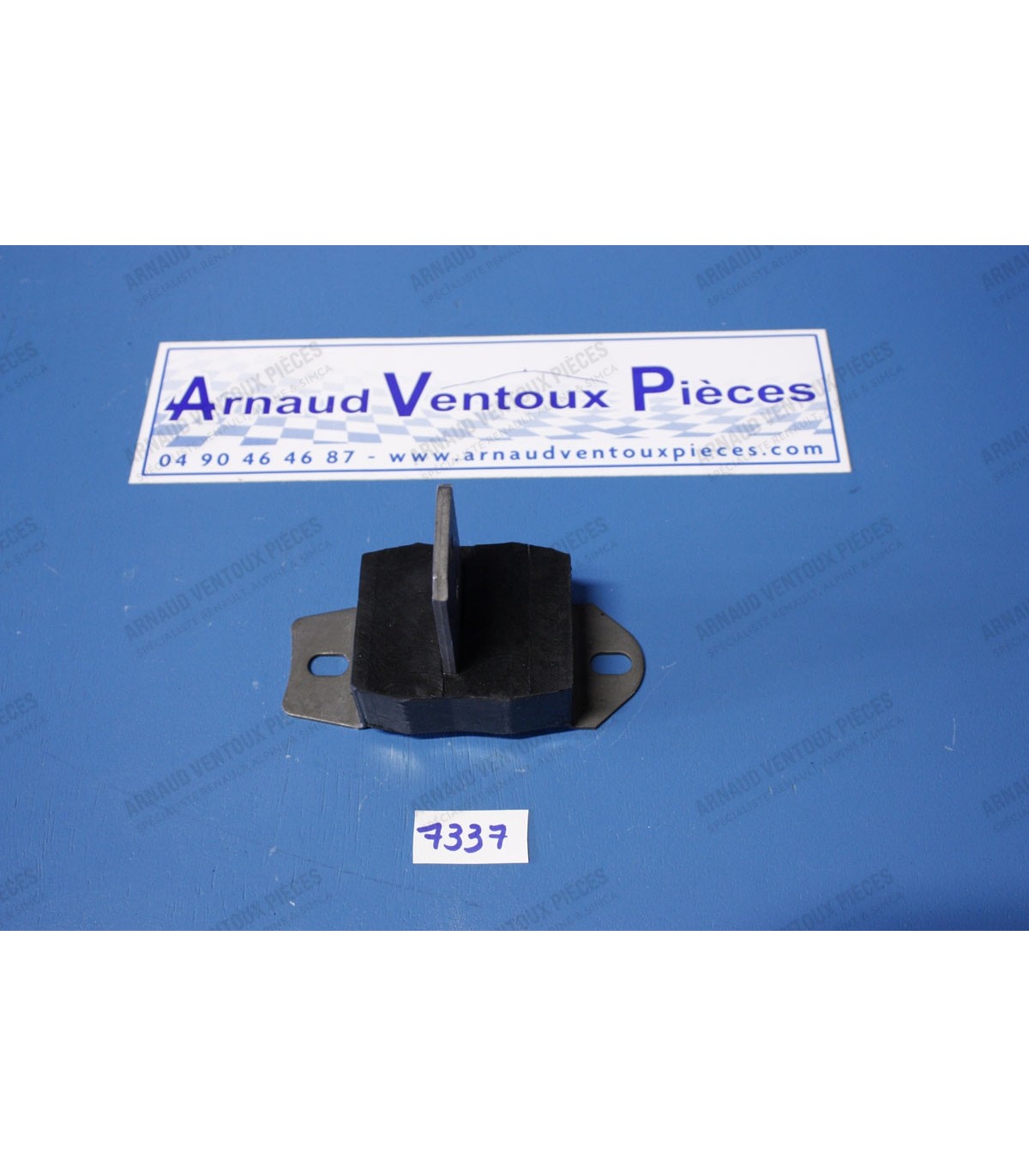

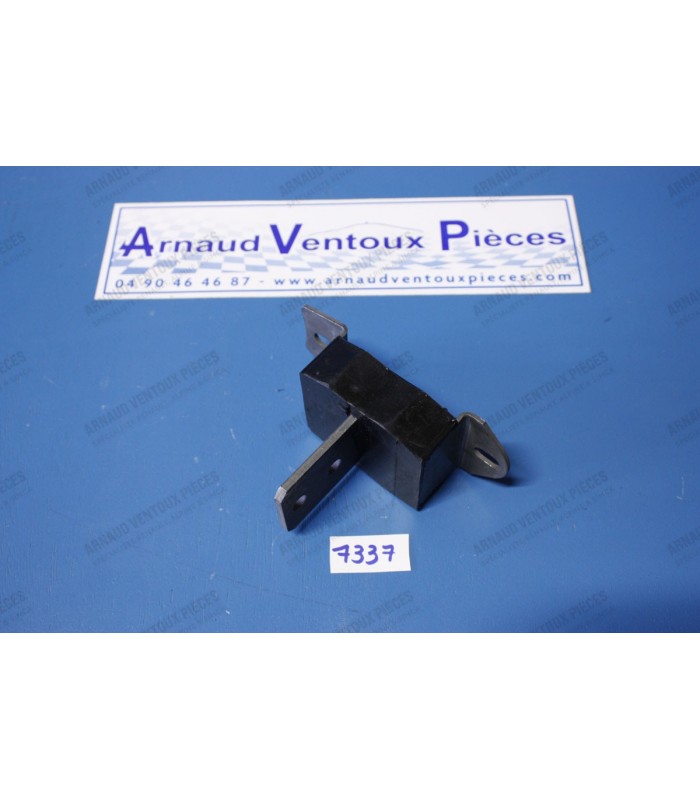

Gearbox support - n°1 to 47707

Suitable for:

• R5 All models (1st Version)
• R12 / R15 / R16 / R17
• A110 V85 / A110.1600cm³ (SI / SX / SC)
• A310.4
• A310 V6 (Before 1981)

Gasket dimensions:

• Inner diameter: Ø 20mm
• Outer diameter: Ø 33mm
• Height (excluding lugs): 5mm
• Recessed diameter: Ø 26mm
• Push button diameter: Ø 19.5mm

• OE Ref Renault: 7700551449 / 7703087023 / 7703087074 / 7703087117

This kit is composed of:

AVP 5223 Ø 12 to 20mm x4

AVP 5215 Ø 16 to 27mm x8

Suitable for:

• R8 / A110: Front Brake (Big Brake Assembly)
• R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
• R12 (All models) / R15TL: Front Brake
• R16(L / TL / TS ) / R16TX (2nd assembly): Front Brake
• A310.4 (n°910 at the end of the series): Front Brake
• A310 V6 (Before 1980): Front Brake

Suitable for:

• R8 / R8G / A110 : Front or rear disc (Big brake assembly)
• A110 1600 SX (VH) : Front or rear disc
• R16 (L / TL / TS) / R16TX : Front disc
• A310.4 (No. 910 at the end of the series): Front disc
• A310 V6 - Before 1980 (No. 1 to No. 47708 ): Rear disc

Réf OE Renault : 0428906000 / 7700572631

• Supplied with 2 banjo bolts: M12x100 and 4 copper gaskets.

Compatible with the following vehicles:

• A310.4: From chassis no. 635 to end of series (With 2nd assembly clutch slave cylinder)
• A310 V6: All models

• The reinforced tie rod and ball joint kit (M14x150) replaces the original M12x100 tie rods and ball joints without any modification.
• It is possible to install it on an A310.4 using the AVP7609 adapter to replace the original "fork" tie rods.
• Tie rod sold individually.
