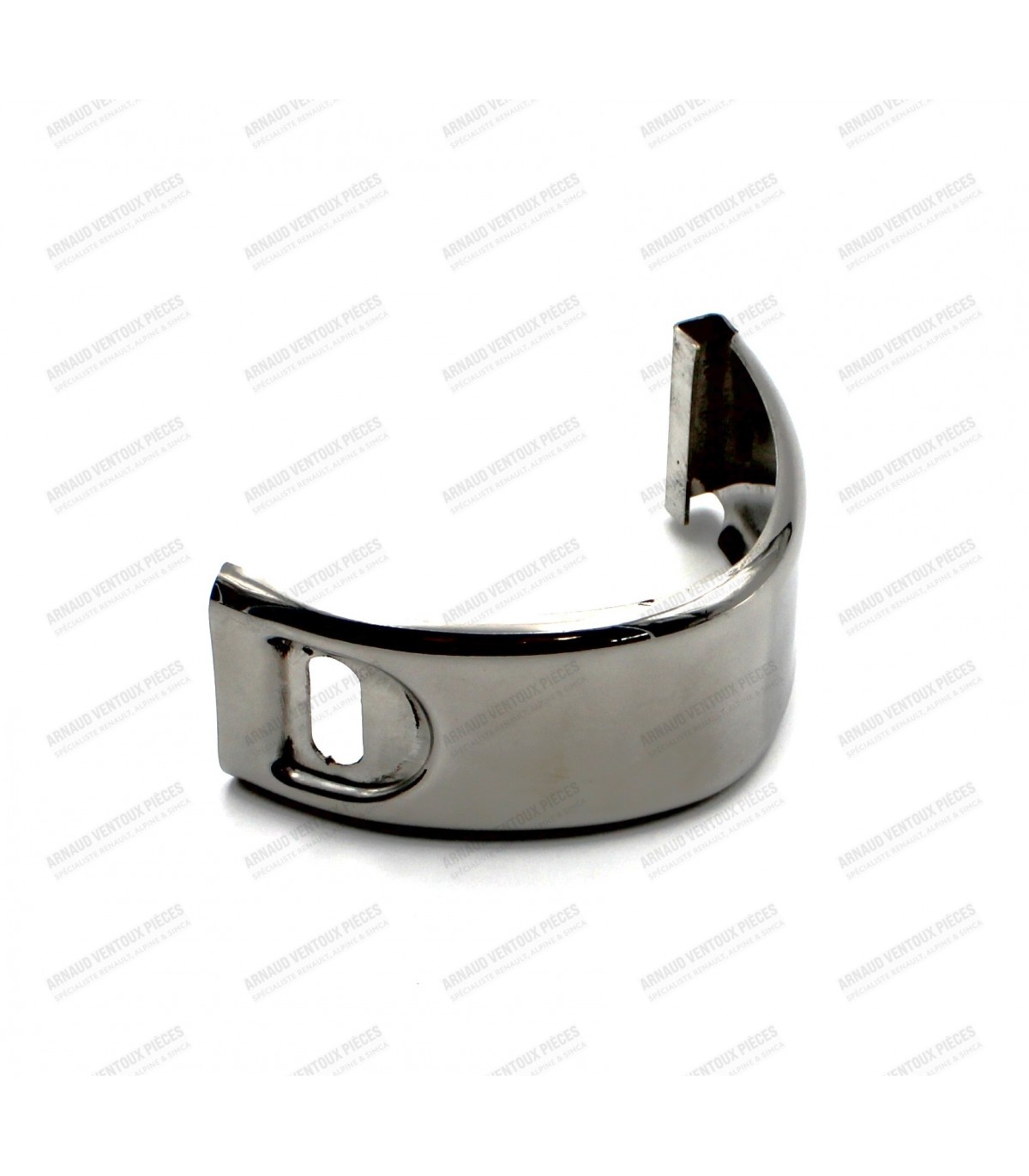

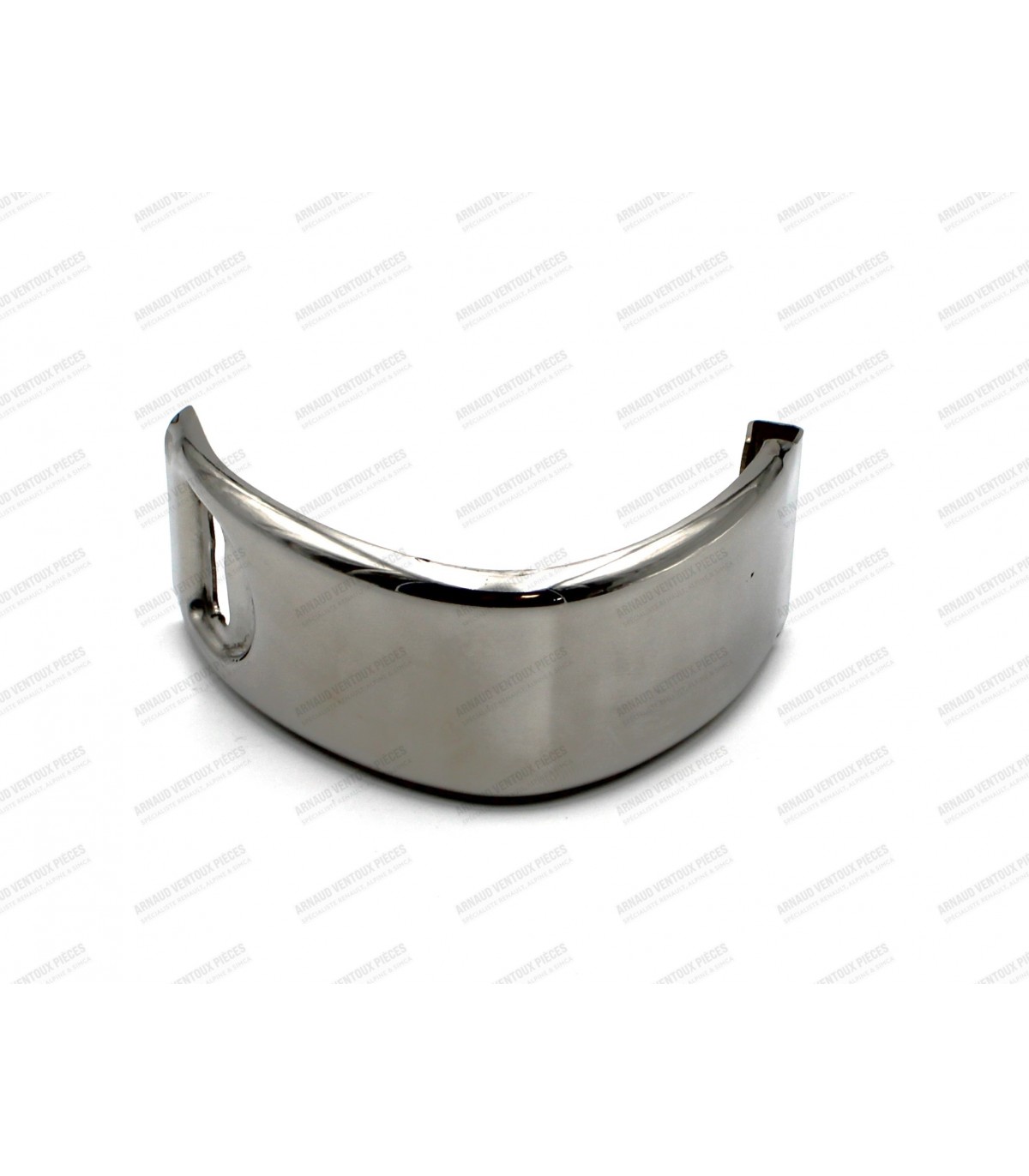

Front bumper seal cover - ref 6000000154

Suitable for:

• R5 All models (1st Version)
• R12 / R15 / R16 / R17
• A110 V85 / A110.1600cm³ (SI / SX / SC)
• A310.4
• A310 V6 (Before 1981)

Gasket dimensions:

• Inner diameter: Ø 20mm
• Outer diameter: Ø 33mm
• Height (excluding lugs): 5mm
• Recessed diameter: Ø 26mm
• Push button diameter: Ø 19.5mm

R12 TS: Double body carburettor 32 DIR / ref: 7700549684

A110.V85

Kit specifications (Tie rods / Ball joints and boots):

• Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
• Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
• Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
• Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
• Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
• Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
• Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.

Suitable for:

• R8 (All models)
• Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "fork-type" steering tie rods.

To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).

• • Self-winding spring-loaded tensioner
  • Features a grease fitting to ensure lubrication and maintain tension on the chain guide.
  • Renault OE Ref: 084627500 / 7700578993 / 7700719076 / 7701349603

->We prioritize quality and reliability: tensioner conforms to original equipment quality.

Need two silentblocs per gearbox control.

The position of the groove for securing the half-moon valve keepers must be checked.

• • Valve angle : 45°
  • Keying type (half-moon): MK (x2 round groove)
  • Renault / Alpine OE part number: 7701458690

Suitable for:

• • • R4: 852cc and 1108cc engines (Cléon engine)
    • Rodeo
    • R5 (GTL / GTS / TL): 1108cc engine
    • Estafette:

1289cc engine (Type 810)

• • R12 (L / TL / TS) and R15 (TL and GTL): 1289cc engine (Type 810)
  • Super 5: C1E and C1C engines
  • Clio 1: C1G and C3G engines
  • Twingo: C3G engine
