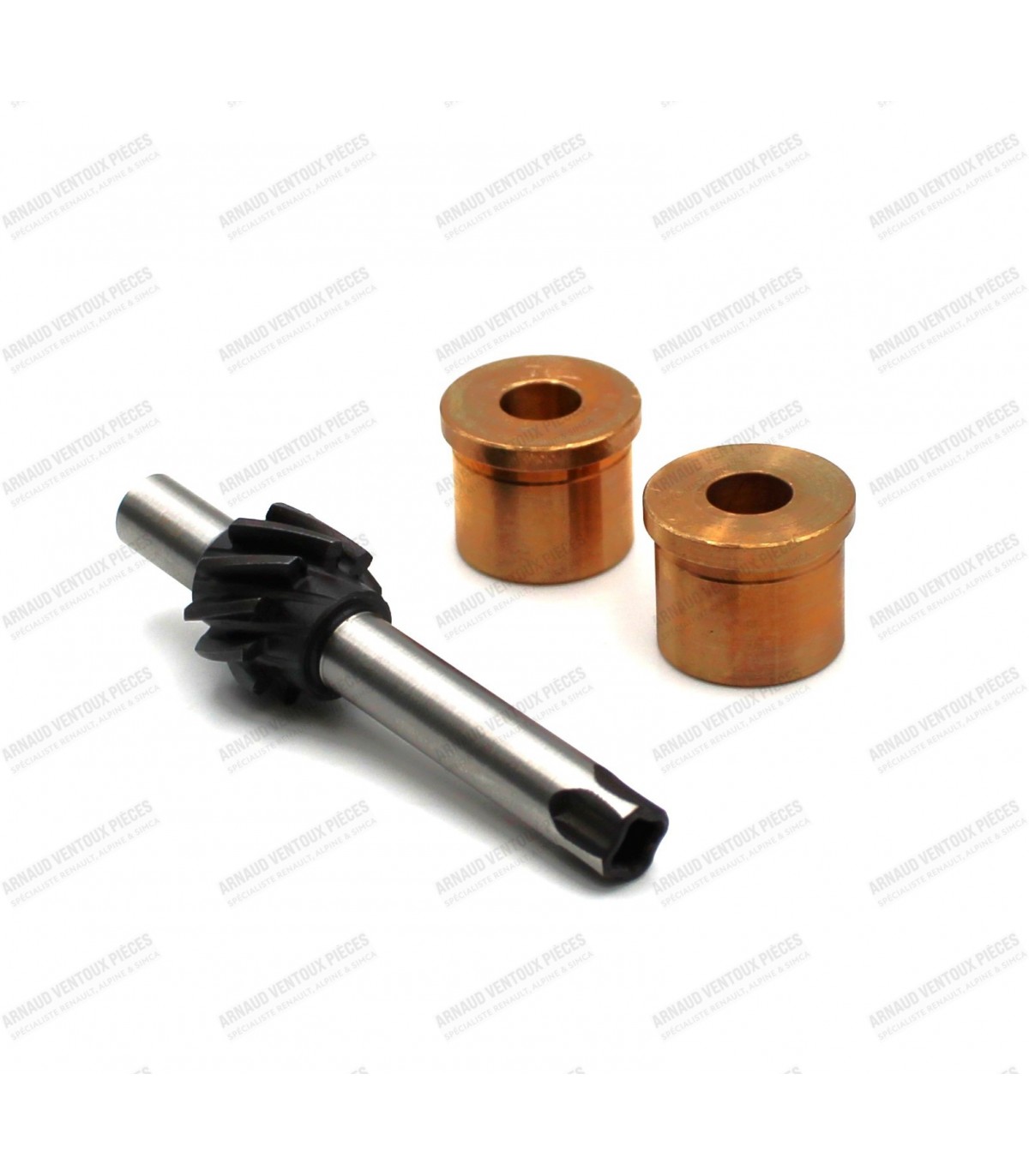

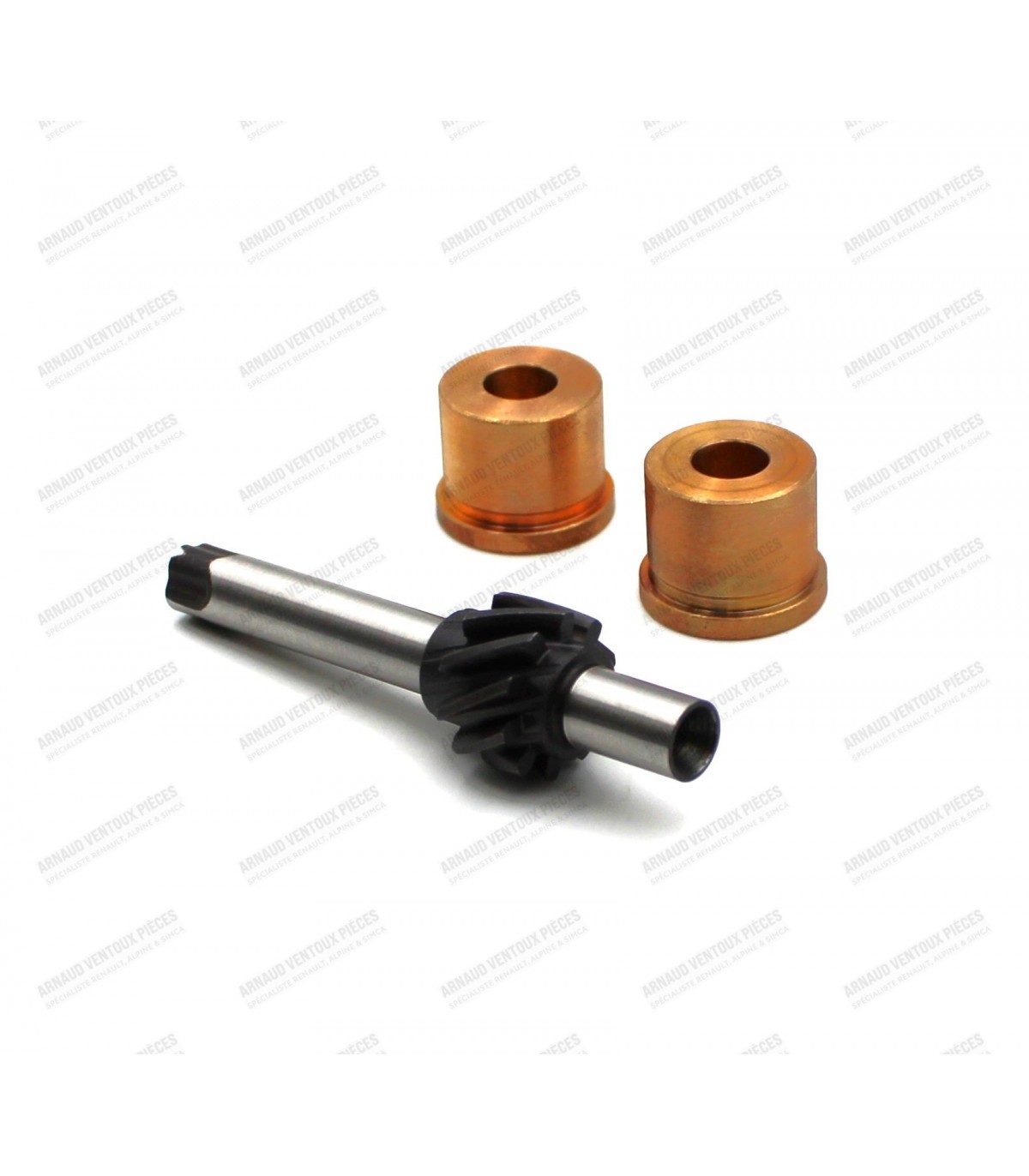

Ducellier rev counter distributor pinion + RING

• Air intake trumpet/trumpet filters for WEBER 45DCOE carburetor
• Mesh filters made of two layers of stainless steel mesh, with an intermediate filter layer ensuring optimal engine protection
• Easily washable and removable
• Suitable for trumpets with an outer flange diameter between Ø 60mm and 70mm
• Filter inner diameter: Ø 58mm
• Filter outer diameter: Ø 80mm
• The filter length when installed on a 63mm trumpet is 82mm (overall)
• Can be mounted on the entire assembly cones from the AVP catalog

• Air intake trumpet/trumpet for WEBER 45DCOE carburetor,
• Protrusion length from the carburetor: 62mm,
• ATTENTION: Must be mounted with venturi REF 48086,
• Mounting kit REF 48098,
• Suitable for mounting AVP filters ref 48101, ref 48102, or ref 48103. (Note the space required in the compartment) engine)

• Cap thread: M16 x 1.5 mm
• Magnetic cap with 8 mm square recess
• Renault OE part numbers: 7830197000 - 7703075152 - 7903075033
• Supplied without gasket.
• Copper gasket part number: AVP 1108

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

With longer rear fender strips

Suitable for:

• Dauphine (All models)
• Floride / Caravelle : Need x2 hoses
• Alpine A108
