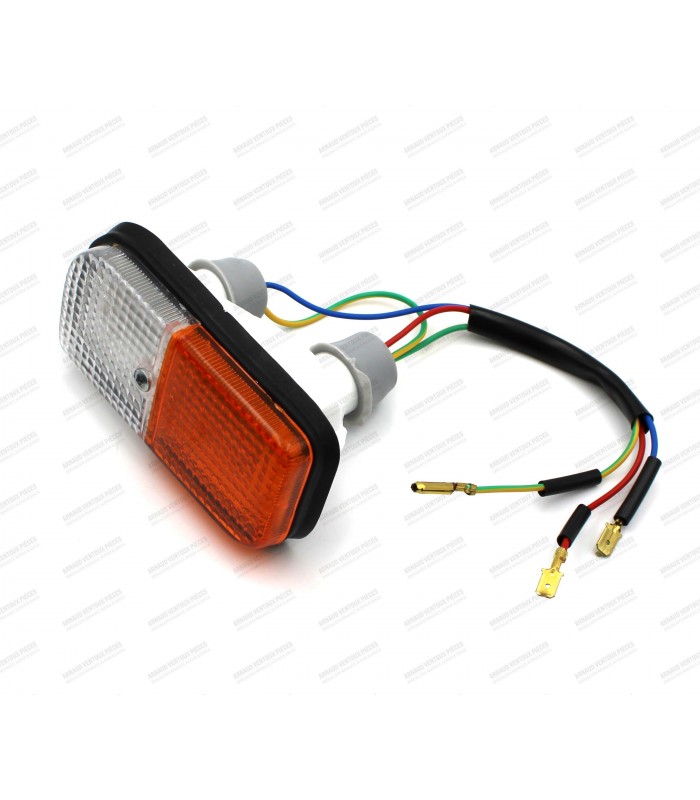

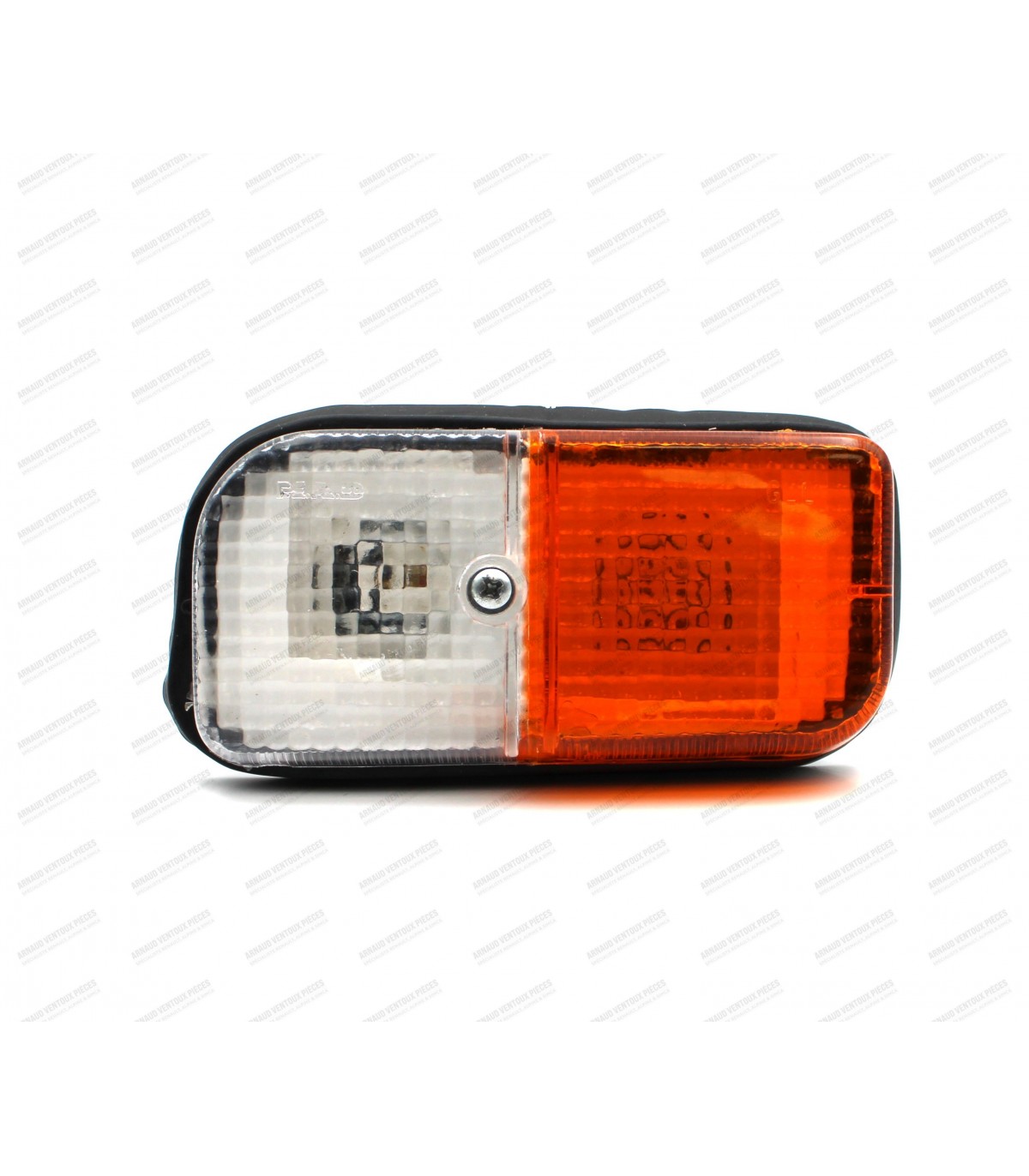

Complete left rectangular turn signal

Cylinder head gasket specifications:

• • Crimping diameter: Ø 59.7mm
  • Cylinder head gasket thickness:1.40mm

Installation direction:

The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).

For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.

If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.

However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.

Length taken from the axis of the fixing eye to the end of the rod: min adjustment 105mm / max 115mm

• It is recommended to perform a dry fit of all body components to ensure proper alignment. Adjustments may be necessary.

Shipping available. Contact us to obtain a transport quote and find out our conditions.

• 3 x Fittings: Ø 3/8"-24UNF (Ø 9.52mm)
• 2 x Mounting Holes

Suitable for:

• R4 / 4L: From 1968 to 1976
• R5 TL / R5 TS
• R16 TS

Filter Dimensions:

• Inner Diameter (D2): Ø148mm
• Outer Diameter (D1): Ø 201mm
• Height (H1): 60mm
• Height (H2): 53mm

The dimensions given are for guidance only; slight variations of a few millimeters are possible depending on availability.

Radiator Dimensions:

• Inlet and Outlet Diameter: Ø 18.3mm
• Radiator Height: 185mm
• Radiator Width: 140mm
• Radiator Depth: 645mm
• Material: Aluminum + Satin Black Paint
• Original Renault OE Reference: 8550945 / 0855094500

Suitable for:

• R8 / R8G / R8S: All models
• Alpine A110: All models
